Shade selection has always been one of the most deceptively difficult tasks in restorative dentistry.

Even with high-end cameras, good lighting, and experience, matching a tooth to a shade guide is still influenced by:

• Ambient light conditions
• Camera auto-adjustments
• Surface reflections
• Regional color variation across the tooth
• Human perception bias

What if we approached shade selection not as a “pick the closest tab” problem — but as a structured color comparison problem grounded in color science?

That’s the idea behind Shade Master.

---

👉 GitHub: https://github.com/elselawi/shade-master

👉 Download the app: Shade Master – Shade Matching for Dentists

Continue reading if you’re interested in the tech and the algorithm behind the app.

---

The Problem with Traditional Shade Matching

Natural teeth are not a single color.

They are:

• Brighter at the cervical third
• More chromatic in the middle
• More translucent and darker at the incisal edge

Most digital shade apps reduce the entire tooth to a single averaged RGB value. That approach throws away critical information.

Shade Master does something different.

It treats shade selection as a multi-region color comparison problem using perceptually accurate color spaces.

---

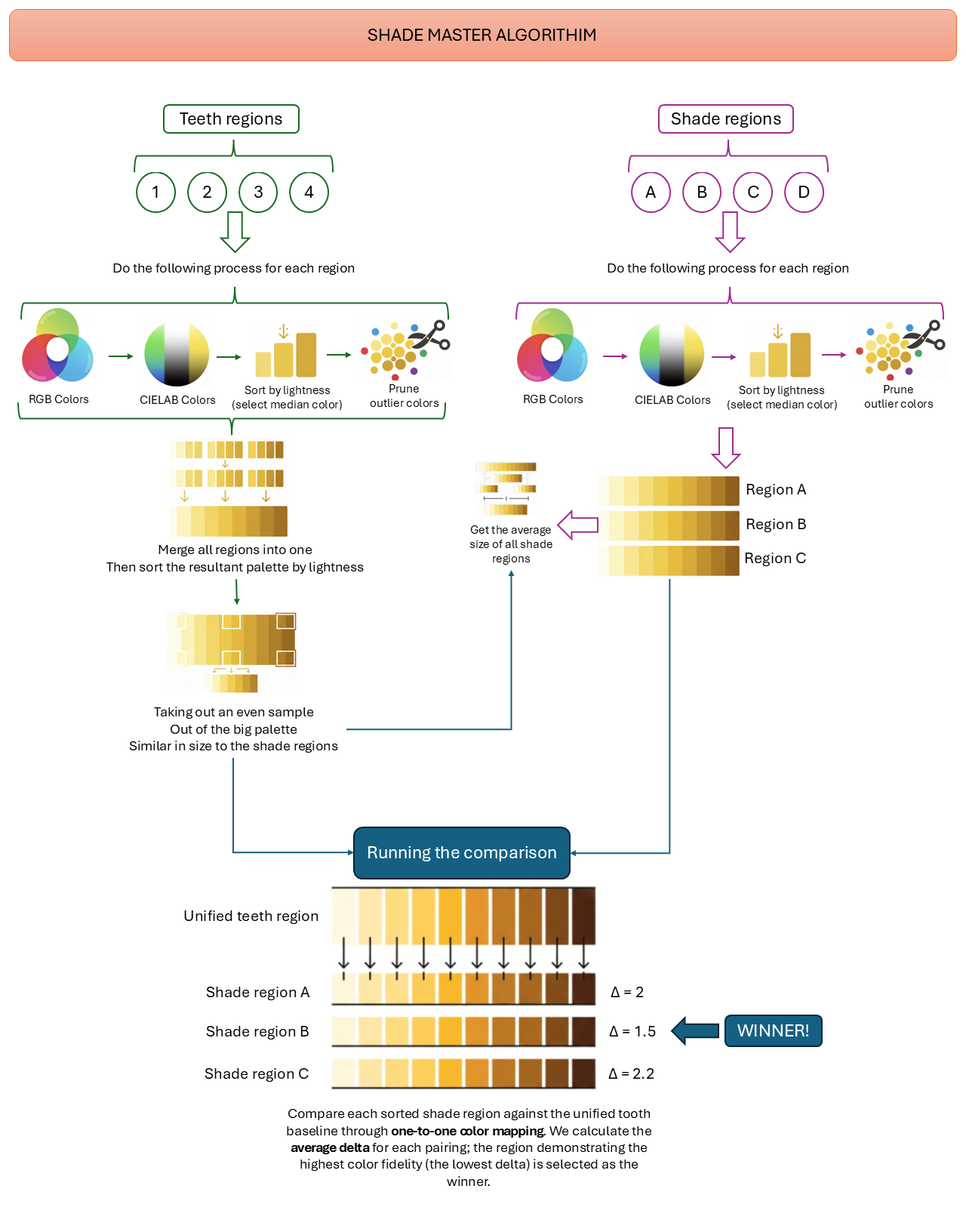

The Core Idea Behind the Algorithm

Instead of comparing raw RGB values, Shade Master:

1. Splits the tooth into multiple regions
2. Extracts representative colors from each region
3. Converts them to CIELAB (a perceptually uniform color space)
4. Compares full tonal distributions instead of single color points
5. Selects the shade with the lowest average Δ (Delta E)

This is not just picking a color.
It is comparing two color distributions intelligently.

---

How the Algorithm Works

Here’s a simplified breakdown of the process.

Step 1 — Divide the Tooth Into Regions

The clinical tooth image is divided into structured regions (for example: cervical, middle, incisal).

Each region is processed independently.

---

Step 2 — Extract Representative Colors

For each region:

• RGB pixels are collected
• Converted to CIELAB
• Sorted by lightness (L*)
• Outliers are pruned
• The median brightness color is selected

Why CIELAB?

Because CIELAB models human color perception more accurately than RGB.
Equal distances in LAB better represent perceived color difference.

---

Step 3 — Build a Unified Tooth Palette

All cleaned regional palettes are:

• Merged
• Re-sorted by brightness
• Evenly sampled to match the size of shade region palettes

This creates a structured tonal fingerprint of the tooth.

Not just one color — but a gradient signature.

---

Step 4 — Process Each Shade Tab the Same Way

Each candidate shade (A, B, C, D, etc.) goes through the same pipeline:

• Region segmentation
• RGB → CIELAB conversion
• Brightness sorting
• Outlier pruning

The shade is now represented as a structured color distribution.

---

Step 5 — One-to-One Tonal Mapping

Instead of averaging everything into a single number, Shade Master:

• Aligns sorted tooth palette with sorted shade palette
• Performs one-to-one mapping
• Calculates ΔE for each paired color
• Computes the average Δ

The shade with the lowest average Delta E wins.

Not the brightest.
Not the closest in RGB.
The one with the highest overall tonal fidelity.

---

Why This Matters Clinically

For dentists:

• Accounts for cervical-to-incisal variation
• Reduces operator bias
• Uses perceptual color space (CIELAB)
• Produces repeatable, objective comparisons
• Improves communication with labs

It transforms shade matching from a subjective judgment into a measurable comparison.

---

Why This Matters Technically

For developers:

Shade Master demonstrates:

• Practical use of CIELAB color space
• Outlier rejection for real-world image noise
• Brightness-based palette alignment
• Distribution comparison instead of centroid comparison
• Deterministic selection using ΔE metrics

It’s an applied example of:

• Image processing
• Perceptual color science
• Data normalization
• Matching algorithms

All implemented in a lightweight application architecture.

---

Designed by a Dentist Who Codes

Shade Master isn’t an academic prototype.

It was built by a practicing dentist who understands:

• The frustration of real shade matching
• The limitations of chairside lighting
• The variability of natural dentition

And also understands:

• Color mathematics
• Software architecture
• Deterministic algorithm design

That combination matters.

Final Thoughts

Shade selection should not depend solely on the human eye.

With structured regional analysis and perceptual color matching, we can:

• Reduce remakes
• Improve lab communication
• Increase restorative accuracy
• Standardize digital shade selection

Shade Master is a step toward that future.
